R-Pro Max

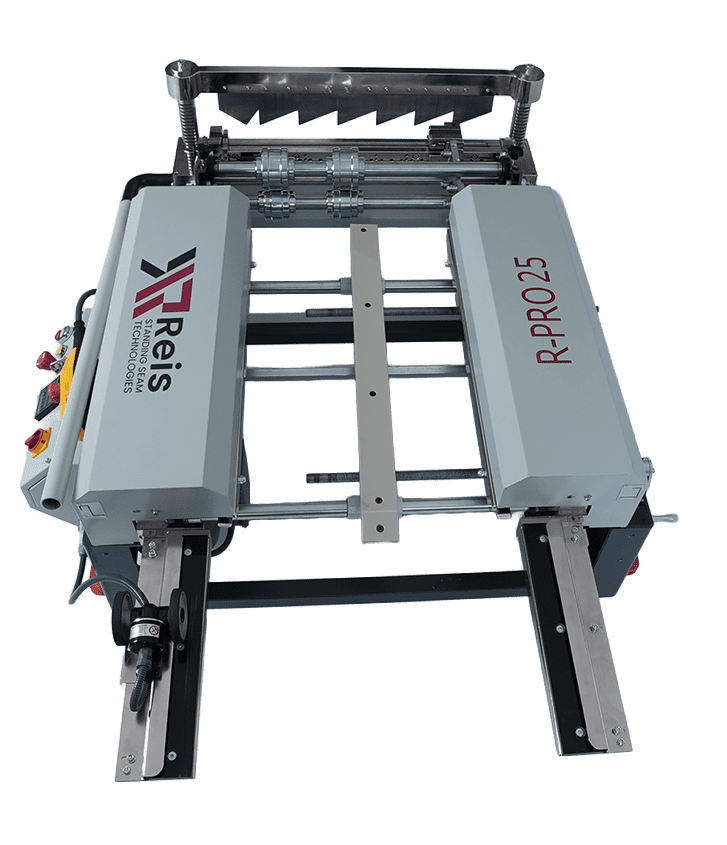

“R-PRO MAX” Standing Seam Machine from REIS STANDING SEAM TECHNOLOGIES, known for its Innovation and Superior Quality in the Architectural Metal Industry.





“R-PRO MAX“ is a portable Standing seam machine, ideal for both workshop and jobsite operations, with a guillotine shear system at the machine exit.

Guillotine shear makes clean cut in a single move without damaging the form of the 25 mm seam height of the panel. Does not damage the surface of painted or patinated materials.





It is a model produced with the highest precision on CNC Processing Machines.



“R-PRO MAX” Standing Seam Profiling Machine is a fully equipped model with a guillotine shear system, digital encoder unit and ribbing attachment equipment.





It has CE Certificate and EU Attestation of Compliance Certificate.



EQUIPMENTS

"R-PRO MAX"

Perfect Standing seam profile production with 25 mm seam height is achieved in a single pass from coil or sheet.



Standing seam profiles can also be produced from conical sheets. The minimum axial dimansion 80 mm with single-sided seam production.

Ribbing Attachment Equipment: Making 25 mm wide- 1,1 mm deep longitudinal strip marks on the panel. If not wanted to be used, it can easily be removed.



Guillotine shear makes clean cut in a single move without damaging the form of the 25 mm seam height of the panel. Does not damage the surface of painted or patinated materials.

The length and quantity of the profile to be produced are entered into the system. The machine stops automatically when it reaches the entered size. This process is repeated until the dimensions are changed from the control unit. Reverse function and emergency stop button.

“R-PRO MAX” Standing Seam roof machine consists of 4 parts. It can be disassembled and installed in a short period of time, if necessary.

“R-PRO MAX” Standing seam machine is suitable for all hard-to-reach jobsites and finds a place in the smallest workshops.



Standing seam panels are produced in high quality, thanks to the use of 7 sets of optimized roll forming roller designs.

“R-PRO MAX” Standing seam roll former can be easily transported by all kinds of panel vans and station wagons.



Detechable infeed arms

Material fix, support base



With the easy rotation of the crank, material width adjustment can be made quickly to the desired size within the range of 250 – 700 mm





QUALITY and TRUST

REIS STANDING SEAM TECHNOLIGIES



• Every manufactured “R-PRO MAX” standing seam machine  goes through delicate tests
• Easy maintenance
• CE Certificate
• ISO 9001:2015
• ISO 12100:2010
• ISO 13857:2019
• EN 60204-1:2018
• EU Attestation of Compliance Certificate
• 2 years of warranty
• Strong management. Loyal, highly trained team.





TECHNICAL FEATURES "R-PRO MAX" Operating Voltage 220 V / 50 Hz / 1 ph. Drive Power 1 x 1.1 kw Operating Speed 9 m/min Forming Stages 7 stations Shortest Panel Length 500 mm Infeed Width  250 – 700 mm Axial Dimension 170 mm – 620 mm (depending on material) Processable Metals Titanium Zinc up to 0,80 mm Copper up to 0,80 mm Aluminium up to 0,80 mm Sheet Steel up to 0,70 mm Stainless Steel up to 0,50 mm Dimensions (LxWxH) 1300 mm x 1300 mm x 750 mm (wheeled) Weight 300 kgs
