R-Pro Duo

----------------------------------------------------------------------





----------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------





It is a model produced with the highest precision on CNC Processing Machines.



--------------------------------------------------------------------------------------------





It has CE Certificate and EU Attestation of Compliance Certificate.



EQUIPMENTS

"R-PRO DUO"

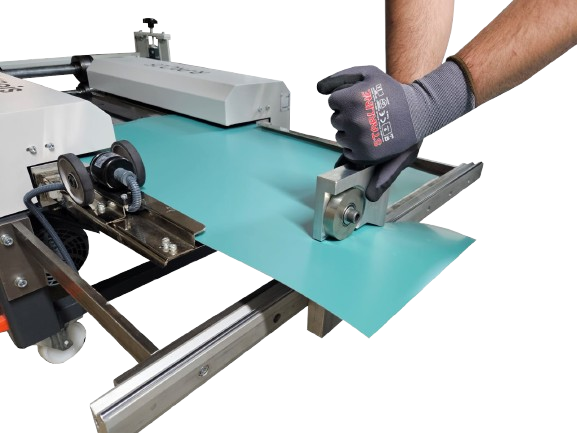

Perfect Standing seam profile production with 25 mm seam height is achieved in a single pass from coil or sheet.



Standing seam profiles can also be produced from conical sheets. The minimum axial dimansion 80 mm with single-sided seam production.

Ribbing Attachment Equipment: Making 25 mm wide- 1,1 mm deep longitudinal strip marks on the panel. If not wanted to be used, it can easily be removed.



-------------------------------------------------------------------------

The length and quantity of the profile to be produced are entered into the system. The machine stops automatically when it reaches the entered size. This process is repeated until the dimensions are changed from the control unit. Reverse function and emergency stop button.

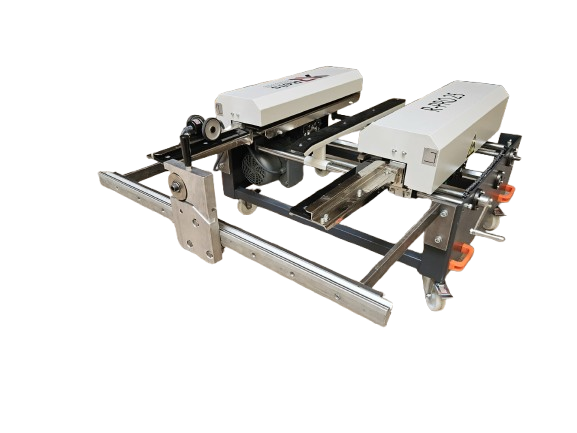

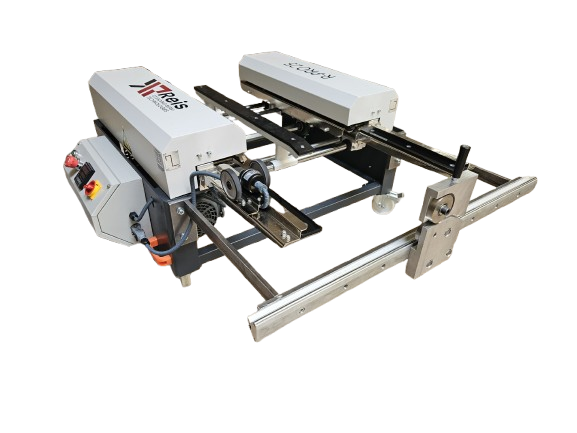

“R-PRO DUO” Standing Seam roof machine consists of 4 parts. It can be disassembled and installed in a short period of time, if necessary.

“R-PRO DUO” Standing seam machine is suitable for all hard-to-reach jobsites and finds a place in the smallest workshops.



Standing seam panels are produced in high quality, thanks to the use of 7 sets of optimized roll forming roller designs.

“R-PRO DUO” Standing seam roll former can be easily transported by all kinds of panel vans and station wagons.

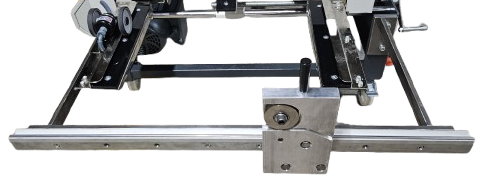

Detechable infeed arms

Material fix, support base



With the easy rotation of the crank, material width adjustment can be made quickly to the desired size within the range of 250 – 700 mm





QUALITY and TRUST

REIS STANDING SEAM TECHNOLIGIES



• Every manufactured “R-PRO DUO” standing seam machine  goes through delicate tests
• Easy maintenance
• CE Certificate
• EU Attestation of Compliance Certificate
• 2 years of warranty
• Strong management. Loyal, highly trained team.





TECHNICAL FEATURES "R-PRO DUO" Operating Voltage 220 V / 50 Hz / 1 ph. Drive Power 1 x 1.1 kw Operating Speed 9 m/min Forming Stages 7 stations Shortest Panel Length 500 mm Infeed Width  250 – 700 mm Axial Dimension 170 mm – 620 mm (depending on material) Processable Metals Titanium Zinc up to 0,80 mm Copper up to 0,80 mm Aluminium up to 0,80 mm Sheet Steel up to 0,70 mm Stainless Steel up to 0,50 mm Dimensions (LxWxH) 1300 mm x 1300 mm x 750 mm (wheeled) Weight 300 kgs
